Polyester Powder Coating for Electrical Cabinets & Furniture: 95% Transfer Efficiency, Salt Spray 1,000hrs. Request Free Color Card & Quote Today!
HSINDA
Polyester-Based Manufacturer Powder Coating Electrical Cabinet Powder Coating for Furniture Car Paint
Product Information
What is polyester-based Powder Coating?
Engineered for durability and aesthetics, this polyester-based powder coating provides exceptional corrosion resistance (withstands 1,000+ hours salt spray test), UV stability, and a smooth finish. Suitable for electrical enclosures, indoor/outdoor furniture, and automotive trims, it ensures excellent adhesion and uniform coverage. Environmentally friendly, free of heavy metals, and compliant with international standards. Custom colors and finishes available. Request a free sample or technical datasheet today!
Categories and Performances of Powder Coatings
Classification by Usage
· Epoxy resin powder coating: Mainly used indoor, offer the best corrosion protection
· Polyester resin powder coating: Mainly used outdoor, offer the highest exterior stability and performance
· Epoxy Polyester Hybrid powder coating: Used indoor or outdoor, offer the best corrosion and weather resistance
Classification by Texture
· Sandy Powder Coating: Mimics the look and feel of natural stone, making it perfect for outdoor furniture, architectural panels, and decorative items.
· Hammertone Powder Coating: Vintage charm, creates a unique, dimpled finish that adds a classic, industrial look to metal surfaces.
· Wrinkle Powder Coating: Creates a distinctive, textured surface that adds depth and character to products.
· Mettallic Powder Coating: Creates a reflective, shimmering effect that adds a touch of elegance to automotive parts, furniture, and decorative items.
· Wood Grain Powder Coating: Replicates the appearance of real wood, making it ideal for furniture, architectural elements, and interior design projects.
· Chrome Powder Coating: Achieve a stunning, high-gloss chrome effect that rivals traditional electroplating, perfect for creating a luxurious and eye-catching appearance.
· Candy Powder Coating: Creates a stunning, semi-transparent effect, and delivers a smooth, reflective finish.
Applications of Product
♦Electrical Household Appliances |
♦Aerospace Area |
♦Automotive Electronics |
♦Fitness Equipment |
♦Track Traffic |
♦Medical Devices |
♦Petroleum Pipes, Valve |
♦Tools & Hardware |
♦LED Lights, Outdoor Lamps |
♦Radiator & Heat Sink |
♦Glass Decoration |
♦External Facilities |
Instruction
Application Voltage |
60-90 KV |
Gun to Component Distance |
15-30CM |
Curing Temperature |
180-200℃,10 min-15 min |
Product Detail
Type |
Epoxy Powder Coating; Polyester Powder Coating; Epoxy-Polyester Powder Coating |
Color |
RAL&Pantone color |
Surface Finish |
Superior gloss and color retention |
Particle Size |
Average 32-42μm |
Specific Gravity |
1.2-1.7g per cubic meter |
Coverage |
8-10 square meters per Kg at 30-90 μm film thickness |
film thickness |
Not less than 100μm |
Storage Stability
♦Store in ventilated, dry, clean room, temperature < 25℃ |
♦Relative humidity 50-65% |
♦Away from direct sunlight, fire, heat |
♦For best performance, use within 6 months |

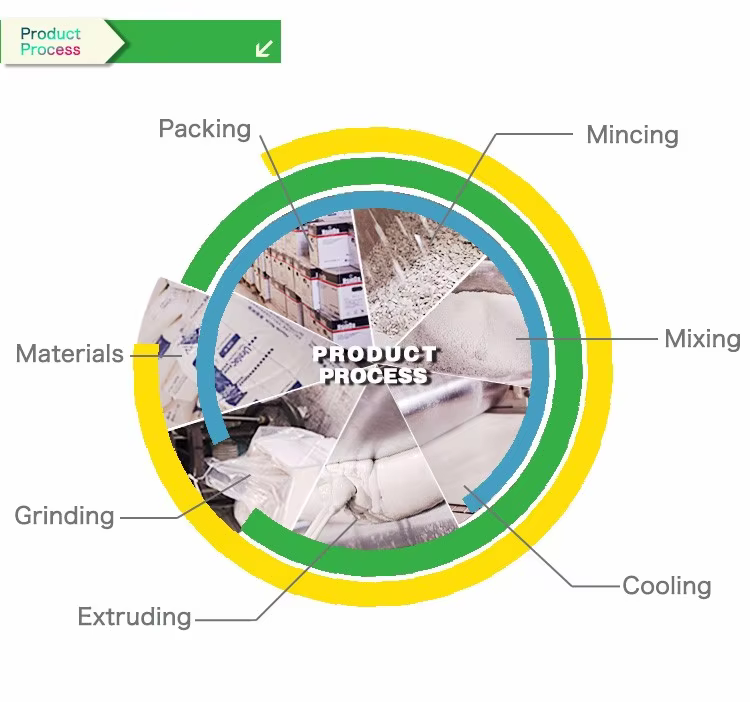

Product Process
Product test
Quality Control
Test Item |
Test Method |
Test Result |
Film Thickness |
ISO2360 |
60-80um |
Pencil Hardness |
ASTMD 3363 |
HB-H |
Bending |
ISO1519 |
≤10mm |
Grid Test 1mm |
ISO2409 |
0 Class |
Impulse Test |
ASTMD2794 |
Pass |
Cupping Test |
ISO1520 |
≥8mm |
Heat Resistance 1000 hours |
ISO6270-1 |
Popping<1mm |
Shigh gloss mirror chrome sliver spray paint powder coating Spray 1000 hours |
ISO9227 |
Corrosion Spreading<1mm |
Hsinda powder coating, offers the best levelling and adhesion to metal surface, with above 60% DSM resin content.
Packing & Shipping
Trade Terms |
FOB, CIF, CRF, CNF |
Payment Terms |
T/T, L/C, West Union, PayPal etc. |
Delivery time |
3-7 days after payment |
Packaging |
Size: 39*26*43 (unit:cm) Weight: N.W. 25kg G.W. 26kg |
Shipping |
By sea, by air, by courier |
Certificates
Company Information
Our Partners
FAQ
1. Are you a factory or trading company?
We are a factory located in Chengdu with many years manufacturing experience. You are most welcome to visit us at a convenient time.
2. Is Powder Coating safe for consumers such as children?
Yes. Powder Coating is used on children’s toys and furniture sold. It has the distinction of being one of the most environmentally and consumer friendly products on the market today.

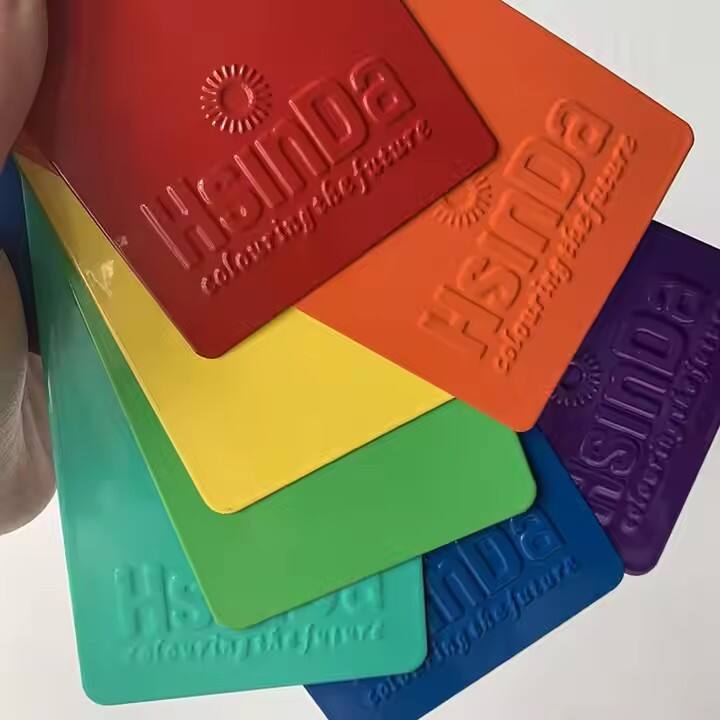

3. What color are available to me?
We usually carry a very large range of colors. Has access to over 300 paint color and texture. Feel to call us and ask if we stock your required color. If not we can customize.
4. Are all the colors the same price?
NO. Some colors are more expensive due to their availability. Ingredients, such as texture powders, candies, metallic, glow in dark powders.
5. Where can I find pricing information?
Our pricing structure is dependant on volume, technology and color choice. Please contact us for specific product pricing.
6. Need more info?
We would love to help you with your Powder Coating questions and of course we look for ward to doing business with you. Let us know how we can help you.
7. What kind of payment terms you can accept?
We accept PayPal, T/T LC,and Western Union
